docker-compose安装ES集群以及kibana并配置账号密码
参考：
https://www.cnblogs.com/wangqq1217/p/17551255.html
一、安装不带密码的es集群
1.1 目录结构
-home
-elasticsearch
-node1
-data
-logs
-config
-elasticsearch.yml
-node2
-data
-logs
-config
-elasticsearch.yml
-node3
-data
-logs
-config
-elasticsearch.yml
1.2 docker-compse.yml配置文件
[root@docker ~/elk]$ cat es3-ceshi.yaml
version: '3.8'
services:
elasticsearch1:
image: docker.elastic.co/elasticsearch/elasticsearch:7.10.2
container_name: es01
volumes:
- /home/elasticsearch/node1/data:/usr/share/elasticsearch/data
- /home/elasticsearch/node1/logs:/usr/share/elasticsearch/logs
- /home/elasticsearch/node1/config/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml
environment:
- bootstrap.memory_lock=true
- TZ=Asia/Shanghai
- LANG=en_US.UTF-8
- "ES_JAVA_OPTS=-Xms1024m -Xmx1024m"
- TAKE_FILE_OWNERSHIP=true
ulimits:
memlock:
soft: -1
hard: -1
ports:
- "9200:9200"
- "9300:9300"
networks:
- elastic
elasticsearch2:
image: docker.elastic.co/elasticsearch/elasticsearch:7.10.2
container_name: es02
volumes:
- /home/elasticsearch/node2/data:/usr/share/elasticsearch/data
- /home/elasticsearch/node2/logs:/usr/share/elasticsearch/logs
- /home/elasticsearch/node2/config/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml
environment:
- bootstrap.memory_lock=true
- TZ=Asia/Shanghai
- LANG=en_US.UTF-8
- "ES_JAVA_OPTS=-Xms1024m -Xmx1024m"
- TAKE_FILE_OWNERSHIP=true
ulimits:
memlock:
soft: -1
hard: -1
networks:
- elastic
elasticsearch3:
image: docker.elastic.co/elasticsearch/elasticsearch:7.10.2
container_name: es03
volumes:
- /home/elasticsearch/node3/data:/usr/share/elasticsearch/data
- /home/elasticsearch/node3/logs:/usr/share/elasticsearch/logs
- /home/elasticsearch/node3/config/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml
environment:
- bootstrap.memory_lock=true
- TZ=Asia/Shanghai
- LANG=en_US.UTF-8
- "ES_JAVA_OPTS=-Xms1024m -Xmx1024m"
- TAKE_FILE_OWNERSHIP=true
ulimits:
memlock:
soft: -1
hard: -1
networks:
- elastic
networks:
elastic:
driver: bridge
1.3 elasticsearch.yml配置文件
es01中的elasticsearch.yml配置文件
# 集群名称[三个容器保持一致]
cluster.name: es-cluster
# 节点名称
node.name: es01
# 绑定host，0.0.0.0代表当前节点的ip
network.host: 0.0.0.0
# 表示这个节点是否可以充当主节点
node.master: true
# 是否充当数据节点
node.data: true
# 所有主从节点
discovery.seed_hosts: ["es01", "es02", "es03"]
# 这个参数决定了在选主过程中需要 有多少个节点通信 预防脑裂 N/2+1
discovery.zen.minimum_master_nodes: 3
#初始化主节点
cluster.initial_master_nodes: es01
# 单节点上可以开启的ES存储实例的个数,没配置的话会报一个错误
node.max_local_storage_nodes: 3
es02中的elasticsearch.yml配置文件
# 集群名称[三个容器保持一致]
cluster.name: es-cluster
# 节点名称
node.name: es02
# 绑定host，0.0.0.0代表当前节点的ip
network.host: 0.0.0.0
# 表示这个节点是否可以充当主节点
node.master: false
# 是否充当数据节点
node.data: true
# 所有主从节点
discovery.seed_hosts: ["es01", "es02", "es03"]
# 这个参数决定了在选主过程中需要 有多少个节点通信 预防脑裂 N/2+1
discovery.zen.minimum_master_nodes: 3
#初始化主节点
cluster.initial_master_nodes: es01
# 单节点上可以开启的ES存储实例的个数,没配置的话会报一个错误
node.max_local_storage_nodes: 3
es03中的elasticsearch.yml配置文件
# 集群名称[三个容器保持一致]
cluster.name: es-cluster
# 节点名称
node.name: es03
# 绑定host，0.0.0.0代表当前节点的ip
network.host: 0.0.0.0
# 表示这个节点是否可以充当主节点
node.master: false
# 是否充当数据节点
node.data: true
# 所有主从节点
discovery.seed_hosts: ["es01", "es02", "es03"]
# 这个参数决定了在选主过程中需要 有多少个节点通信 预防脑裂 N/2+1
discovery.zen.minimum_master_nodes: 3
#初始化主节点
cluster.initial_master_nodes: es01
# 单节点上可以开启的ES存储实例的个数,没配置的话会报一个错误
node.max_local_storage_nodes: 3
1.4 启动es并校验
docker-compose up -d
在浏览器上使用http://宿主机ip:port/_cat/nodes查看集群，正常情况能看到如下的情况，即表示es安装成功【注意，默认的9200的端口需要开放】：
192.168.192.2 19 41 4 0.07 0.64 1.21 dilm * es01
192.168.192.3 20 41 4 0.07 0.64 1.21 dilm - es03
192.168.192.4 17 41 4 0.07 0.64 1.21 dilm - es02
二、添加集群的密码设置
2.1 修改elasticsearch.yml配置文件
在三个es对应的elasticsearch.yml配置文件的最后，分别添加如下内容，每个里面都添加
# 开启x-pack功能
xpack.security.enabled: true
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.verification_mode: certificate
2.2 重启es集群服务
docker-compose down
docker-compose up -d
2.3 生成证书文件
执行以下命令进入es01的容器内部【其他两个容器也可以】
docker exec -it es01 /bin/bash
执行命令生成证书文件，根据提示输入y
./bin/elasticsearch-certutil cert -out config/elastic-certificates.p12 -pass ""
执行完毕后，记录证书文件的位置，一般情况下是： /usr/share/elasticsearch/config/elastic-certificates.p12，输入exit或者ctrl+D退出容器；
复制容器内部的证书文件到本地磁盘中来；
docker cp es01:/usr/share/elasticsearch/config/elastic-certificates.p12 ./
将复制出来的证书文件，分别复制在三个es的config目录一份
cp elastic-certificates.p12 /home/elasticsearch/node1/config
cp elastic-certificates.p12 /home/elasticsearch/node2/config
cp elastic-certificates.p12 /home/elasticsearch/node3/config
给当前文件夹授权，让可访问密钥文件
chmod -R 777 /home/elasticsearch
2.4 修改docker-compse.yml配置文件
在docker-compse.yml配置文件中，添加证书文件的地址映射配置
[root@docker ~/elk]$ cat es3-ceshi.yaml
version: '3.8'
services:
elasticsearch1:
image: docker.elastic.co/elasticsearch/elasticsearch:7.10.2
container_name: es01
volumes:
- /home/elasticsearch/node1/data:/usr/share/elasticsearch/data
- /home/elasticsearch/node1/logs:/usr/share/elasticsearch/logs
- /home/elasticsearch/node1/config/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml
- /home/elasticsearch/node1/config/elastic-certificates.p12:/usr/share/elasticsearch/config/elastic-certificates.p12
environment:
- bootstrap.memory_lock=true
- TZ=Asia/Shanghai
- LANG=en_US.UTF-8
- "ES_JAVA_OPTS=-Xms1024m -Xmx1024m"
- TAKE_FILE_OWNERSHIP=true
ulimits:
memlock:
soft: -1
hard: -1
ports:
- "9200:9200"
- "9300:9300"
networks:
- elastic
elasticsearch2:
image: docker.elastic.co/elasticsearch/elasticsearch:7.10.2
container_name: es02
volumes:
- /home/elasticsearch/node2/data:/usr/share/elasticsearch/data
- /home/elasticsearch/node2/logs:/usr/share/elasticsearch/logs
- /home/elasticsearch/node2/config/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml
- /home/elasticsearch/node2/config/elastic-certificates.p12:/usr/share/elasticsearch/config/elastic-certificates.p12
environment:
- bootstrap.memory_lock=true
- TZ=Asia/Shanghai
- LANG=en_US.UTF-8
- "ES_JAVA_OPTS=-Xms1024m -Xmx1024m"
- TAKE_FILE_OWNERSHIP=true
ulimits:
memlock:
soft: -1
hard: -1
networks:
- elastic
elasticsearch3:
image: docker.elastic.co/elasticsearch/elasticsearch:7.10.2
container_name: es03
volumes:
- /home/elasticsearch/node3/data:/usr/share/elasticsearch/data
- /home/elasticsearch/node3/logs:/usr/share/elasticsearch/logs
- /home/elasticsearch/node3/config/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml
- /home/elasticsearch/node3/config/elastic-certificates.p12:/usr/share/elasticsearch/config/elastic-certificates.p12
environment:
- bootstrap.memory_lock=true
- TZ=Asia/Shanghai
- LANG=en_US.UTF-8
- "ES_JAVA_OPTS=-Xms1024m -Xmx1024m"
- TAKE_FILE_OWNERSHIP=true
ulimits:
memlock:
soft: -1
hard: -1
networks:
- elastic
networks:
elastic:
driver: bridge
2.5 再次修改elasticsearch.yml配置文件
在三个elasticsearch.yml配置文件中，分别添加以下两行配置，用来指定证书文件的路径【此处指定的内容为容器内部的地址，而非磁盘路径】
xpack.security.transport.ssl.keystore.path: /usr/share/elasticsearch/config/elastic-certificates.p12
xpack.security.transport.ssl.truststore.path: /usr/share/elasticsearch/config/elastic-certificates.p12
2.6 再次重启es集群服务
在docker-compose.yml文件的同级目录，执行以下命令，关闭并删除es的容器
docker-compose down
docker-compose up -d
2.7 设置es集群的各种密码
进入容器内部【三个容器任意一个都行】
docker exec -it es01 /bin/bash
执行手动设置密码的命令【也可以使用自动生成的密码，但是不好记忆，在此忽略】
./bin/elasticsearch-setup-passwords interactive
### 先输入y
### 然后依次给es预设的账号设置密码
### ps:有七八个账号要设置,要么一一记录下来,要么设置成一样的
设置完成后，执行exit命令或者ctrl+D退出容器，访问es就需要账号密码了，默认账号是【elastic】
http://宿主机ip:port/_cat/nodes
输入账号:elastic
输入密码: ***********
能看到类似以下内容即可：
192.168.192.2 19 41 4 0.07 0.64 1.21 dilm * es01
192.168.192.3 20 41 4 0.07 0.64 1.21 dilm - es03
192.168.192.4 17 41 4 0.07 0.64 1.21 dilm - es02
三、安装kibana并配置账号密码
3.1 目录结构
-home
-kibana
-config
-kibana.yml
3.2 docker-compse.yml配置文件
version: '3.7'
services:
kibana:
image: kibana:7.10.2
container_name: kibana
restart: unless-stopped
privileged: true
volumes:
- ./kibana/config/kibana.yml:/usr/share/kibana/config/kibana.yml
ports:
- 5601:5601
networks:
- es
networks:
es:
3.3 kibana.yml配置文件
server.name: kibana
server.host: "0"
# 可以填容器名加端口,也可以用宿主机ip和映射的端口，此处填写主节点的容器路径即可
elasticsearch.hosts: [ "http://127.0.0.1:9200/"]
xpack.monitoring.ui.container.elasticsearch.enabled: true
i18n.locale: zh-CN
# 设置用户名和密码，用户名固定不用改，密码是2.7步骤中设置的密码
elasticsearch.username: "elastic"
elasticsearch.password: "xxxxxxx"
# kibana默认端口是5601
server.port: 5601
3.4 启动es并访问
docker-compose up -d
四、遇到的问题
4.1 证书文件没有执行权限
# 使用该命令添加证书的执行权限
chmod +x elastic-certificates.p12
ik插件安装–地图
进入到每个es01 es02 es03 执行
bin/elasticsearch-plugin install https://github.com/medcl/elasticsearch-analysis-ik/releases/download/v7.10.2/elasticsearch-analysis-ik-7.10.2.zip
安装完之后记得三个容器都重启

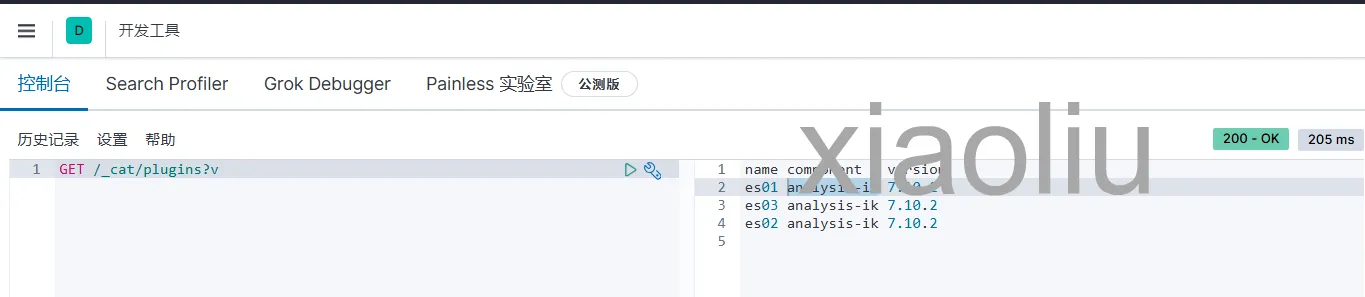

验证下就好了
GET /_cat/plugins?v
4.2 kibana无法访问，提示"Kibana server is not ready yet”
1.核验kibana.yml配置文件中的es的地址能被访问
2.检查用户名密码是否正确
3.kibana启动后需要稍等1分钟左右才能被访问
五.logstash
5.1 目录结构
-home
-logstash
-config
-logstash.yml
-logstash.conf
logstash.yml内容
http.host: "0.0.0.0"
xpack.monitoring.elasticsearch.hosts: [
"http://10.100.20.206:9200",
]
xpack.monitoring.elasticsearch.username: "elastic"
xpack.monitoring.elasticsearch.password: "ptMF0bT5jMErJnmi5HWy"
logstash.conf内容
input {
tcp {
mode => "server"
host => "0.0.0.0"
port => 4560
codec => json_lines
type => "debug"
}
tcp {
mode => "server"
host => "0.0.0.0"
port => 4561
codec => json_lines
type => "error"
}
tcp {
mode => "server"
host => "0.0.0.0"
port => 4562
codec => json_lines
type => "business"
}
tcp {
mode => "server"
host => "0.0.0.0"
port => 4563
codec => json_lines
type => "record"
}
}
filter{
if [type] == "record" {
mutate {
remove_field => "port"
remove_field => "host"
remove_field => "@version"
}
json {
source => "message"
remove_field => ["message"]
}
}
}
#output {
# elasticsearch {
# hosts => "http://elasticsearch-node1:9200"
# index => "open-course-%{type}-%{+YYYY.MM.dd}"
# user => "root"
# password => "zjtvu_zst1"
# }
#}
output {
elasticsearch {
hosts => "http://10.100.20.206:9200"
index => "open-%{type}-%{+YYYY.MM.dd}"
user => "elastic"
password => "ptMF0bT5jMErJnmi5HWy"
}
}
docker-compste
logstash:
image: docker.elastic.co/logstash/logstash:7.10.2
container_name: logstash
ports:
- "4560:4560"
- "4561:4561"
- "4562:4562"
- "4563:4563"
depends_on:
- es01
- es02
volumes:
- /home/logstash/logstash.conf:/usr/share/logstash/pipeline/logstash.conf
- /home/logstash/logstash.yml:/usr/share/logstash/config/logstash.yml
environment:
- LOGSTASH_JAVA_OPTS=-Xms1g -Xmx1g
restart: unless-stopped
